Servo motor model definition:

K 180 – 26 / 20 – 47 X N G 1

1 2 3 4 5 6 7 8 9

1, K: serial number

2. Motor flange number: 150 180 250

3, 26: continuous working torque (N.m) under rated speed, see parameter table

4, 20: rated speed 2000rpm, 18-1800, 17-1700, 15-1500rpm

5, 47: Maximum short-time overload torque of the motor (N.m)

6, X: resolver P: absolute position encoder

7, N: no brake Z: power failure brake

8, G: junction box outlet method H: aviation plug outlet method

9, 1: Design number (1~9)

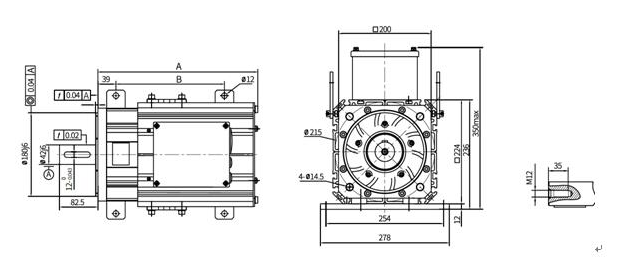

K180 series dimensions:

Remarks: B size customers can adjust according to requirements

K180 series technical parameters:

K180 is recommended to be equipped with cc/rev:
