Servo motor model definition:
K150 – 26 / 20 – 47 X N G 1
1 2 3 4 5 6 7 8 9
1, K: serial number
2. Motor flange number: 150 180 250
3, 26: continuous working torque (N.m) under rated speed, see parameter table
4, 20: rated speed 2000rpm, 18-1800, 17-1700, 15-1500rpm
5, 47: Maximum short-time overload torque of the motor (N.m)
6, X: resolver P: absolute position encoder
7, N: no brake Z: power failure brake
8, G: junction box outlet method H: aviation plug outlet method
9, 1: Design number (1~9)

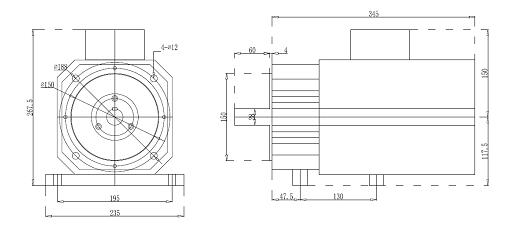

K150 series dimensions:
K150 series technical parameters:
Torquen（Nm） | Rated/maximum（rpm） | Currentn（A） | powern（Kw） | frequencyn（HZ） | resistance ohm | inductance（mH） | Kt（Nm/A） | |
Knowhow | Cold/hot | |||||||
K150-26/20-47XNG1 | 26 | 2000/2500 | 8.6 | 5.5 | 133.33 | 2.60 | 20.42 | 3/2.96 |
K150-36/20-65XNG1 | 36 | 2000/2500 | 12.8 | 7.5 | 133.33 | 1.80 | 15.518 | 2.8/2.6 |

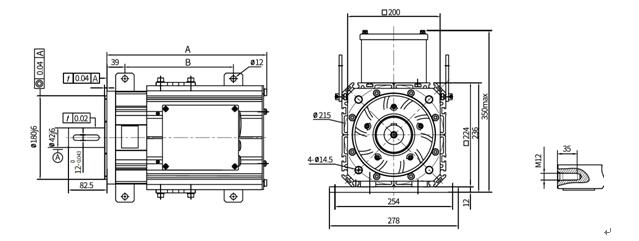

K180 series dimensions:
K180-53/20 | K180-63/20 | K180-85/20 | K180-103/20 | K180-120/20 | K180-150/20 | |
A | 345 | 381 | 417 | 453 | 489 | 575 |
B | 265 | 285 | 310 | 350 | 395 | 470 |
Remarks: B size customers can adjust according to requirements
K180 series technical parameters:
motor model | Torquen（Nm） | Rotating speedn（rpm） | Currentn（A） | 功率n（Kw） | frequencyn（HZ） | resistance ohm | inductance（mH） | Kt（Nm/A） |
Knowhow | Cold/hot | |||||||
K180-53/20-95XNG1 | 53 | 2000 | 22 | 11 | 133.33 | 0.81 | 9.23 | 2.53/2.45 |
K180-63/20-113XNG1 | 63 | 2000 | 27.6 | 13.2 | 133.33 | 0.56 | 7.30 | 2.37/2.35 |
K180-85/20-153XNG1 | 85 | 2000 | 38.64 | 18.1 | 133.33 | 0.35 | 4.49 | 2.34/2.29 |
K180-103/20-185XNG1 | 103 | 2000 | 46.8 | 21.5 | 133.33 | 0.23 | 3.42 | 2.2/2.1 |
K180-120/20-216XNG1 | 120 | 2000 | 59.3 | 25.76 | 133.33 | 0.18 | 2.76 | 2.2/2.08 |
K180-150/20-270XNG1 | 150 | 2000 | 71 | 33.5 | 133.33 | 0.12 | 1.80 | 2.32/2.14 |
K180 is recommended to be equipped with cc/rev:
servo motor | driver | 14MPa | 25MPa | |
11 | K180-53/20-95XNG1 | EM500T25A-C | 32cc | 16cc |
15 | K180-63/20-113XNG1 | EM500T32A-C | 40cc | 20cc |
18 | K180-85/20-153XNG1 | EM500T37A-C | 50cc | 25cc |
22 | K180-103/20-185XNG1 | EM500T45A-C | 63cc | 32cc |
25 | K180-120/20-216XNG1 | EM500T60A-C | 70cc | 40cc |
33 | K180-150/20-270XNG1 | EM500T75A-C | 80cc | 50cc |

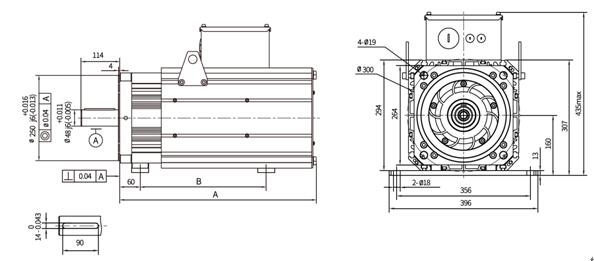

K250 series dimensions:
motor model | K250-190/17 | K250-240/18 | K250-325/15 | K250-382/15 |
A | 524 | 577 | 631 | 684 |
B | 316 | 370 | 423 | 476 |
Remarks: B size customers can adjust according to requirements
K250 series technical parameters:
Torquen（Nm） | Rotating speedn（rpm） | Currentn（A） | powern（Kw） | frequencyn（HZ） | resistance ohm | inductance（mH） | Kt（Nm/A） | |
Knowhow | Cold/hot | |||||||
K250-190/17-342XNG1 | 190 | 1700 | 77.2 | 33.91 | 113.33 | 0.11 | 3.20 | 2.65/2.43 |
K250-240/18-432XNG1 | 240 | 1800 | 96.5 | 45.24 | 120 | 0.08 | 2.385 | 2.65/2.48 |
K250-325/15-585XNG1 | 325 | 1500 | 120 | 51 | 100 | 0.07 | 2.77 | 2.9/2.71 |
K250-382/15-687XNG1 | 382 | 1500 | 140 | 60 | 100 | 0.06 | 2.10 | 3.07/2.73 |
